TECHNICAL SPECIFICATION

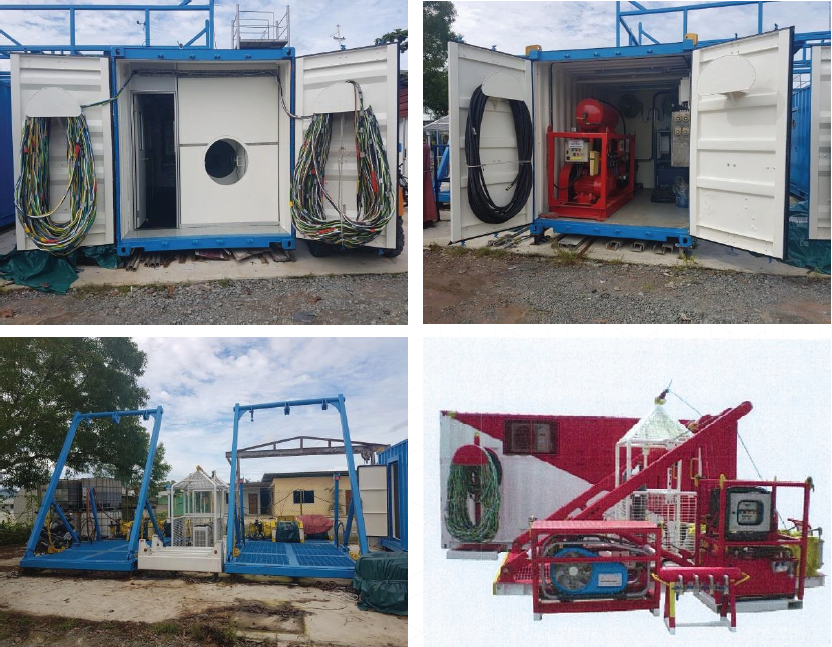

CONTAINER No.1 (Fully Air Conditioned dive control and DDC)

1. 1500mm, twin lock, 2men deck decompression chamber x 1. (fitted with 1 x O2 Analyser and 1 x CO2 Analyser for chamber internal main lock and entry lock atmosphere analyse, 1 x O2 Analyser for chamber outer atmosphere analyse.)
2. 3 divers surface air control panel fitted with 3 x O2 analyser x 1.
3. 2 divers video recording system (with built in video transmitter via wifi (to within 20m distance) or internet (to unlimited distance) ) and deck monitors.
4. 3 divers light control system x 1.
5. Deck monitoring system c/w 8 x magnetic based hd camera and video recording system.
6. Diving umbilical x 3lengths (D1 -150m, D2- 170m and D3 – 190m)

CONTAINER No. 2 (Machinery and Dive Tech Room)

1. 33hp Electric motor driven Quincy 5120 250cfm Low pressure compressor x 1.
2. Bauer Mariner 250 High Pressure compressor x 1.
3. Hydraulic power pack x 2.
4. Electric power supply junction box x 1.

Launch and Recovery System (LARS) X 2 sets

1. A-frame with landing platform x 2sets
2. ‘RAM’ man riding air winch c/w 10mm x 100m unrotating wire x 4sets
3. Dive basket with umbilical guide and 2 x 47liters cylinder x 2sets
4. Clump weight x 2

DIMENSION AND WEIGHT
